1880 UHS

CIJ

FEATURES

Line speed capability

Can print 1 to 3 lines of print at speeds of up to 1,294 ft/min (394 m/min)
(10 characters per inch, single line of print)

Font matrix configuration

Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24
Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9
Tri-line: 4×5, 5×5, 4×7, 5×7

Linear bar codes

UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; GS1

QR codes

Intermittent: 50mm/sec. to 300mm/sec. (2.0”/sec to 11.8”/sec)

Continuous: 40mm/sec. to 500mm/sec. (1.6”/sec to 19.7”/sec)

Operator Interface

21×21, 25×25
Error correction mode L, M, Q or H

DataMatrix codes

10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26, 8×32, 12×36, 16×36, 16×48

Nominal character height

Selectable from 0.047” (1.2mm) to 0.236” (6mm), depending on font

Throw distance

EAN8, EAN13, UPCA, UPCE and QR codes

Ribbon Length

Optimal: 0.335” (8.5mm)
Range: 0.197” (5mm) to 0.472” (12mm)

User interface

10.4” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing

Custom logo/graphics

Can be created via optional CLARiSOFT™ software*

Character sets

Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American

Languages and interface options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Input/output

Product detect input; Encoder input; Beacon (Alarm light) output; Relay output;
USB 2.0 (2x); Ethernet LAN™; Built-in Wi-Fi

Message storage

More than 250 complex messages

Environmental protection

IP55 standard, no plant air required, stainless steel cabinet
IP66 protected electronics optional

Heated printhead

CleanFlow™ including positive air, no plant air required (optional)
Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)

Printhead umbilical

Ultra flexible Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)

Make-up consumption

2.6ml per hour (MEK at 20°C)

Fluids containers

Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml); 1.06 qt. (1000ml)

Temperature/humidity range

41°F to 113°F (5°C to 45°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions

Electrical requirements

Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W

Approximate weight

Unpacked and dry: 46.3lbs. (21kg)

Options

Dust protection kit with CleanFlow™ technology
Dry air kit for high humidity (requires plant air)
Cellular communication
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories

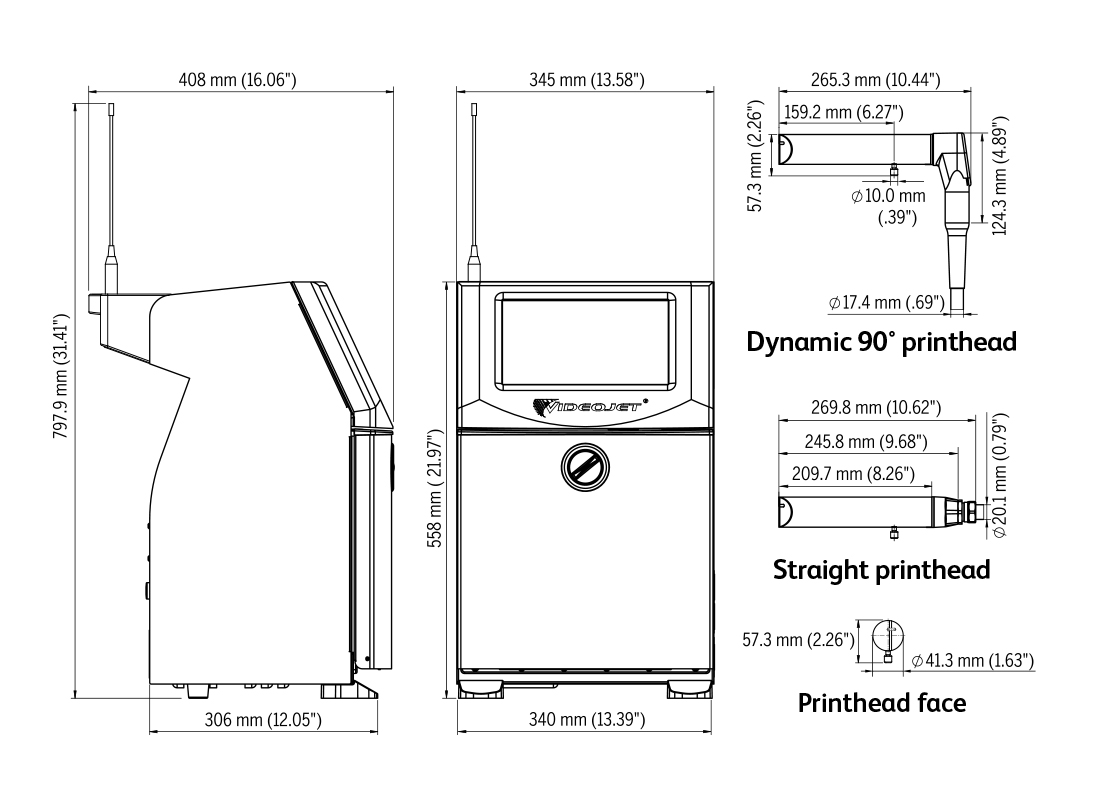

Printer body
